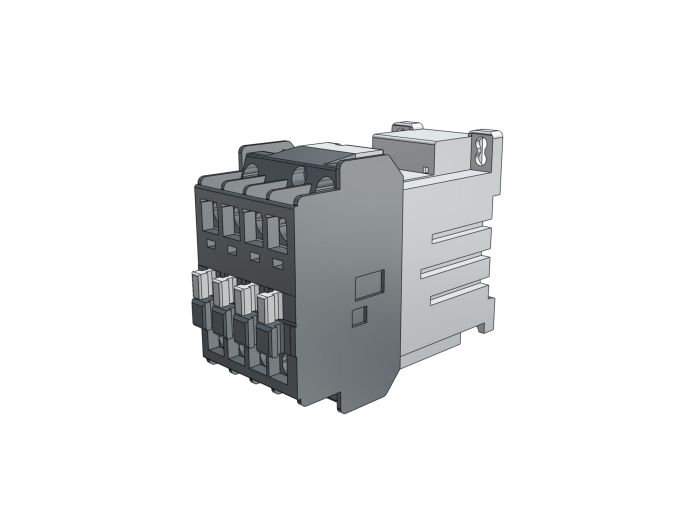

NL22E-86

ABB Control Relays, NL Series

Control Relay, 4-P 2NO/2NC, 110VDC

MFG Item Number

NL22E-86

Series

More specs

This item cannot be canceled or returned

Request Lead Time

Description

Control Relays, NL Series

Item #

NL22E-86

Control Relay, 4-P 2NO/2NC, 110VDC

NL Series Information

Magnetic Circuit Variants: NL Types: D.C. Operated with Solid Magnetic Circuits
2 Versions: 4 Pole or 8 Pole
Bifurcated Auxiliary Contacts
Alone or Mounted with a 4 Pole CA5 Auxiliary Contact Block, these Devices Offer "Positive Safety" between their Auxiliary Contacts

There are many applications where safety is very critical and it is important to use electrical equipment which ensures that dangerous machine movement cannot occur when a fault is detected with the moving contacts during the cycle which the fault is indicated.

The ABB Type N & NL 4 and 8 pole relays are designed with "Positive Guided" contacts and fulfill the regulations or standards shown.

The relays can provide positive safety for the N.O. and N.C. contacts which assure that the N.O. contacts will not close before any N.C. contact opens. Therefore, if one of the contacts weld due to abnormal conditions in the control circuit, the other contacts will also remain in the same position as when the welding occurred. This means that the open contacts must maintain an air distance 0.5mm when the coil is energized at 110% Vc or when it is de‑energized.

Links

Specifications

Specifications
Manufacturer Part Number	NL22E-86
Manufacturer	ABB
Product Series	NL
Family Series	ABB Control Relays, NL Series
Description	Control Relay, 4-P 2NO/2NC, 110VDC
Nominal Voltage	110 VDC
Voltage	110 VDC
Number of Poles	4
Contact Configuration	2NO, 2NC
Thermal Current Rating	16 A
Termination	Screw
Mounting	DIN Rail, Screw
Approvals	UL
Net Weight	32.76 lbs
Gross Weight	1.15 lbs
