Description
Encoders, ZCH Series
Item #
ZCH0100C
ZC H 100PPR
ZCH Series Information
- Up To 500 Pulse Per Revolution (PPR) Rates
- Current Sink And Quadrature Outputs
- Sealed Precision Ball Bearings
- Rugged Cast Aluminum Housing
- 3/8" Dia. Stainless Steel Shaft
- Wide Input Supply Voltage Range & Low Current Operation
- Various Cable Lengths Available

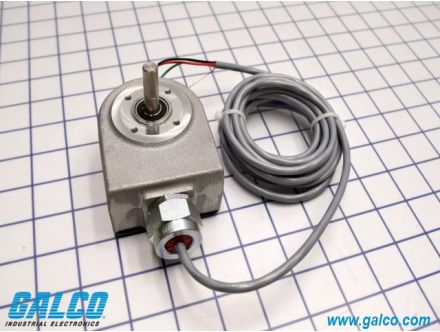

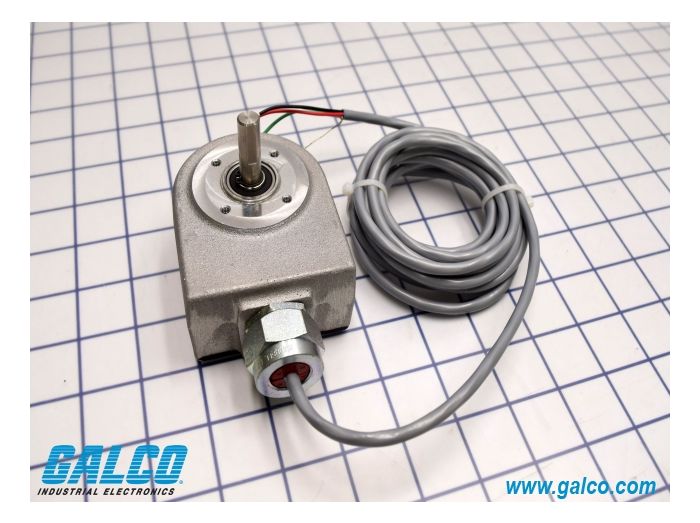

The units are rugged, incremental encoders that convert shaft rotation into a current sinking pulse train. Internally, a single L.E.D. light source and a photologic sensor in conjunction with a shaft‑mounted, durable, metal‑etched encoder disc, provides signal accuracy and reliability to 50 KHz. The DC input power supply requirement is a versatile+8 to +28 VDC, and is reverse polarity protected. The NPN Open Collector Transistor Output is current limited to 40 mA and is compatible with most RLC counters, rate indicators, controllers and accessories. All units are packaged in a rugged cast aluminum housing with a gasketed, rear aluminum cover. The 3/8" (9.53 mm) diameter heavy duty stainless steel shaft and sealed, lifetime‑lubricated precision ball bearings are preloaded for minimum end play and rated for continuous use up to 6000 RPM. They are designed to meet NEMA 13/IP54 environmental requirements. All units are supplied with 10 feet (3M) of PVC jacketed 4‑wire, 22 AWG cable with stranded shield wire and 100% foil shield coverage.
Specifications
| Manufacturer Part Number | ZCH0100C |
|---|---|
| Manufacturer | Red Lion |
| Product Series | ZCH |
| Family Series | Red Lion Encoders, ZCH Series |
| Description | ZC H 100PPR |
| Resolution (PPR) | 100 |
| Incremental Channels | Dual |
| Shaft/Bore Size | 3/8 " |
| Shaft Seal | No |
| Shaft Type | Single Ended |
| Bolt Circle | 1.5 " |
| Input Voltage | 8-28 VDC |
| Output Type | Quadrature/Current Sink |
| Output Voltage | 1-30 VDC |
| Electrical Output Type | Open Collector |
| Termination | 10 ft Cable, 3 Wire |
| Mating Connector | Not Included |
| Status Indicator | No |
| Sensing | Optical |
| Bearings | Yes |
| Operating Temperature | 0-70 °C |
| NEMA Rating | NEMA 13 |
| Mounting | Shafted |
| Protection Rating | IP54 |
| Net Weight | 0.89 lbs |
| Gross Weight | 1.4525 lbs |
