5000109-13L

Eaton's Crouse-Hinds series Cordsets, MININEON Series
Eaton-s-Crouse-Hinds-series

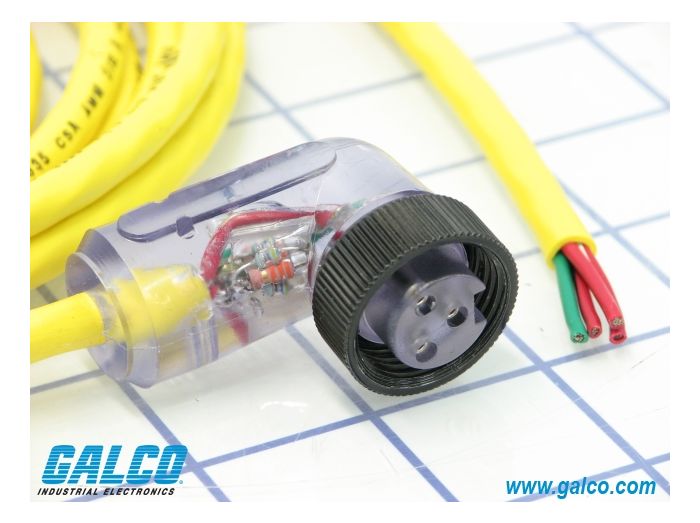

main product photo

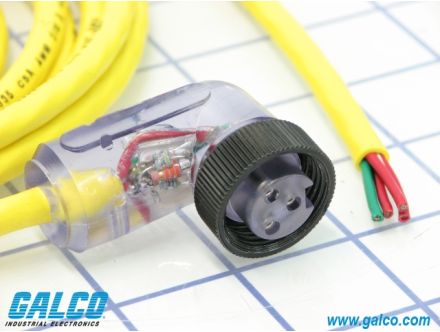

5000109-13L

Eaton's Crouse-Hinds series Cordsets, MININEON Series
Eaton-s-Crouse-Hinds-series
MINI 3P FP RA IL 16/3 12 FT
MFG Item Number
5000109-13L
Series
MININEON
More specs
This item cannot be canceled or returned

Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Request Lead Time

Description

Cordsets, MININEON Series
Item #
5000109-13L
MINI 3P FP RA IL 16/3 12 FT

MININEON Series Information

  • Neon Indicator Bulb in Connector Housing
  • Three Pins
  • Automotive Color Code
  • Shroud and Cork Design exceeds IP‑68 and NEMA 6P
  • 1000 Hour Salt Spray Corrosion Resistance per MIL‑STD‑202F
  • Meets Current SAE #H1738‑2 Specifications
Crouse‑Hinds Mini‑Line connectors, molded to heavy‑duty STOOW and SOOW cable, have been designed specifically for abusive applications in which the cable is exposed to constant flexing and/or dirty, oily, or harsh environments. They also have excellent resistance to welding flash, hot chips, and other severe conditions found in demanding manufacturing settings.

The molded‑to‑cable construction becomes an integral part of the cable assembly, creating a bond that is impervious to penetration from external contaminants. Its one‑piece connector head is made from material with the same physical properties as the cable jacket and provides far superior service.

Links

Specifications

Specifications
Manufacturer Part Number 5000109-13L
Manufacturer Eaton's Crouse-Hinds series
Product Series MININEON
Family Series Eaton's Crouse-Hinds series Cordsets, MININEON Series
Description MINI 3P FP RA IL 16/3 12 FT
Cable Type AWM
Number of Pins 3
Connection Type Right Angle Plug
Connection Configuration Male to Flying Leads
Max Voltage 120 VAC
Color Yellow
Current Rating 6 A
Connection 7/8-16 UN
Length 3.5 m
Connector Class Mini (7/8 in)
Cable Shielding None
Number of Wires 3
Number of Keys 1
Wire Size Range 18
Operating Temperature -20-105 °C
NEMA Rating NEMA 1, NEMA 13, NEMA 3, NEMA 4, NEMA 6P
Illuminated Yes
Status Indicator Neon
Cordset Ends Single-Ended
Cordset Type Signal
Material Zinc
Protection Rating IP68
Side 1 Gender Male
Side 1 Angle Right Angle
Side 2 Gender Flying Leads
Side 2 Angle Straight
Approvals CSA, UR
