503-0004
NTE Electronics Knobs, 16 Series

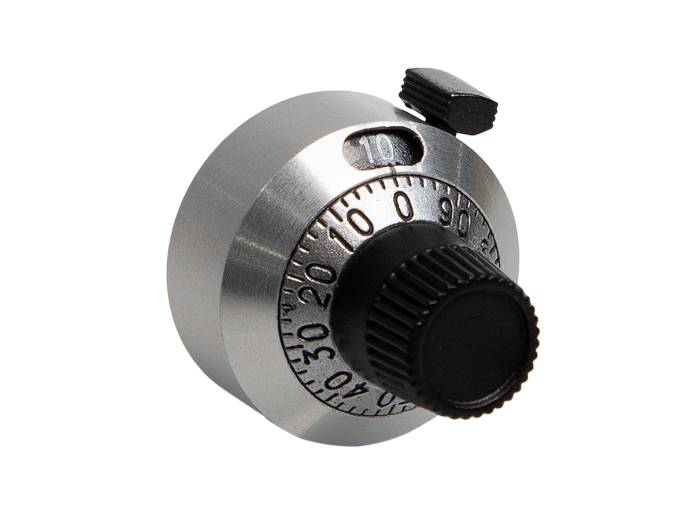

503-0004 NTE Electronics Knobs, 16 Series, COUNTING DIAL, 7/8in. DIA, SATIN CHROM
MFG Item Number
503-0004
Series
More specs
This item cannot be canceled or returned
Obsolete
Description
Knobs, 16 Series
Item #
503-0004
COUNTING DIAL, 7/8in. DIA, SATIN CHROM
16 Series Information
- Vernier Scale
- No. 2‑56 Spline Socket Set Screw for Mounting
- Brake Lever Knob
- Open Window Display
- Available in Satin Chrome or Black Chrome Finish
turns of the drive sleeve. Graduated circular dial indicates the percent of a partial turn of the drive sleeve.
Minor Scale Division: 1/50 turn
Indication: 0 to 14.99 turn
Brake Lever: 1st position (15° movement of brake lever) operates a high torque system for fine adjustment; 2nd position (15° additional
movement of brake lever) actuates brake.
Accuracy: Backlash shall be zero between graduated dial and drive sleeve
Rotation: The indication shall increase with clockwise and decrease with a counterclockwise rotation.
Transfer Point: The number in the center of the window shall change as graduated dial rotates between 94 and 0.
Specifications
| Manufacturer Part Number | 503-0004 |
|---|---|
| Manufacturer | NTE Electronics |
| Product Series | 16 |
| Family Series | NTE Electronics Knobs, 16 Series |
| Description | COUNTING DIAL, 7/8in. DIA, SATIN CHROM 15 TURN, INCLft.S BRAKE LEVER KNOB ACCEPTS 1/4in. DIA SHAFT |
| Number of Turns | 15 |
| Finish | Satin Chrome |
| Shaft Size | 0.25 " |
| Mounting | Set Screw |
| Net Weight | 0.04 lbs |
| Gross Weight | 0.045 lbs |
