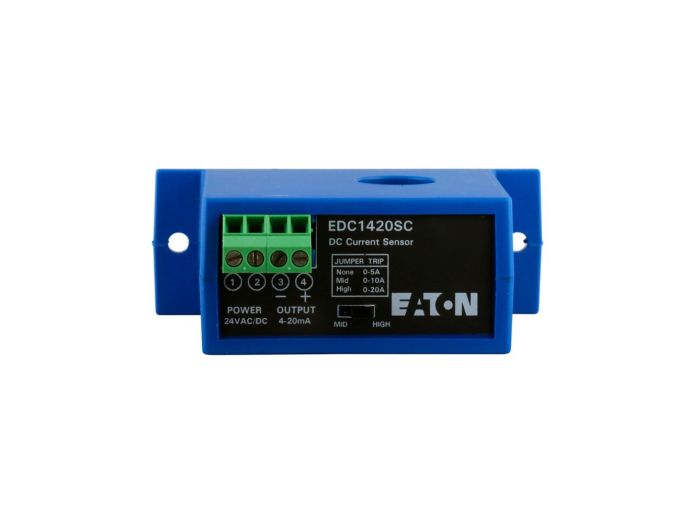

EDC1420SC
Eaton Sensors, EDC Series
EDC1420SC
Eaton Sensors, EDC Series
PWR SENSOR,CURR,SOL,DC,4-20MA,5-10-20A
MFG Item Number
EDC1420SC
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Accessories
Description
Sensors, EDC Series
Item #
EDC1420SC
PWR SENSOR,CURR,SOL,DC,4-20MA,5-10-20A
EDC Series Information
- Jumper‑Selectable Ranges
- Isolation for safety
- Internal Power Regulation
- Split Core Design and Built‑In Mounting Brackets
- UL, CE approved
The CurrentWatch EDC Series from Eaton's electrical business combines a hall effect sensor and signal conditioner into a single package for use in DC current applications up to 300A. The EDC Series has a jumper‑selected current input ranges and indusrty standard outputs: 4‑20 mA, 0‑5 VDC or 0‑10 VDC. Available in split‑core models for quick and easy installation.
Typical Application
- Battery Banks‑ Monitors load current, monitors chargind current and verifies operation
- Transportation‑ Measures traction power and auxillary loads
- Electric Heating Elements‑ Monitors heater load with faster response time than temperature sensors
Specifications
| Manufacturer Part Number | EDC1420SC |
|---|---|
| Manufacturer | Eaton |
| Product Series | EDC |
| Family Series | Eaton Sensors, EDC Series |
| Description | CurrentWatch Series Current Transducer, Current Sensor, UL94 V0 Flammability Rated Plastic enclosure, Measure up to 20A max AC, Screw Terminals, 24V AC/DC input, 1 FS accuracy |
| Split Core | No |
| Power Supply | 24 VAC, 24 VDC |
| Window Size | 0.75 " |
| Output | 4-20 mA |
| Current Rating | 10 A, 20 A, 5 A |
| Response Time | 20 ms |
| Output Limit | 23 mA |
| Terminals | Top |
| Approvals | CE, UL |
| Comments | DC Load Sensing |
| Net Weight | 0.3 lbs |
| Gross Weight | 0.33 lbs |
