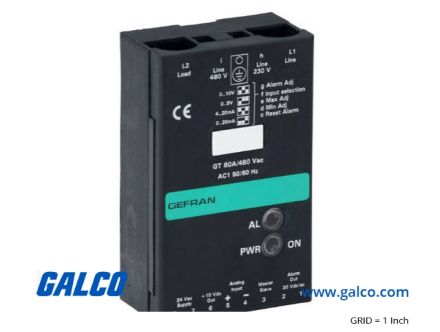

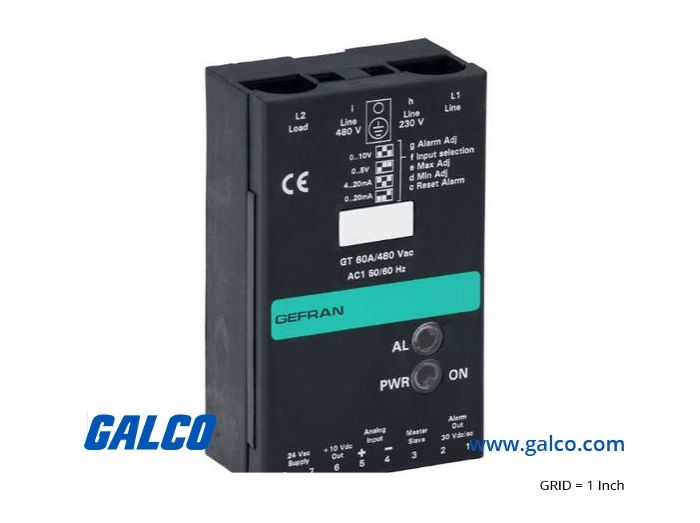

GT-40/480-1
Gefran Relays, GT Series
GT-40/480-1 Gefran Relays, GT Series, GT-40/480-1 480V, 40A SCR, Solid
MFG Item Number
F023699
Item Number
GT-40/480-1
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Relays, GT Series
Item #
GT-40/480-1
GT-40/480-1 480V, 40A SCR, Solid
GT Series Information
The GT family of solid‑state relays has been designed with the aim of providing very accurate control of the load thanks to an analog control input, in voltage at 0‑5V; 0‑10V or in current at 0‑20/4‑20mA or a potentiometer (from 1 kOhm to 10 kOhm). The electronic design ensures that the cycle time for proportioning the power is automatically optimized. The number of cycles that the GT supplies to the load (wave trains) for a given input signal is calculated to be the minimum possible to maintain the necessary accuracy.
The GT can be used in three phase systems, using master‑slave control architecture in which the control signal drives only one GT (master) and this unit supplies the synchronized signals to the other slaves. Two GS modules can also be used as slaves (logic control). A load interrupt control option (HB) is available without having to use an external current transformer; alarm limit is settable with trimmer and yellow LED signal, with voltage‑free contact, normally open. The GT solid‑state relay has a green LED to indicate the presence of the 24Vac power supply and a red LED to indicate the switching based on the analog control input signal. The LED signal will be continuous (off at minimum, on at maximum) at the ends of the scale, pulsing for intermediate values.
The units offer optional accessories for panel mounting, fuses and fuseholders, current transformer, isolation transformers.
The GT can be used in three phase systems, using master‑slave control architecture in which the control signal drives only one GT (master) and this unit supplies the synchronized signals to the other slaves. Two GS modules can also be used as slaves (logic control). A load interrupt control option (HB) is available without having to use an external current transformer; alarm limit is settable with trimmer and yellow LED signal, with voltage‑free contact, normally open. The GT solid‑state relay has a green LED to indicate the presence of the 24Vac power supply and a red LED to indicate the switching based on the analog control input signal. The LED signal will be continuous (off at minimum, on at maximum) at the ends of the scale, pulsing for intermediate values.
The units offer optional accessories for panel mounting, fuses and fuseholders, current transformer, isolation transformers.
Specifications
| Manufacturer Part Number | F023699 |
|---|---|
| Manufacturer | Gefran |
| Product Series | GT |
| Family Series | Gefran Relays, GT Series |
| Description | GT-40/480-1 480V, 40A SCR, Solid State Relay |
| Circuit | 1NO |
| Mounting | Surface |
| Status Indicator | Yes |
| Auxiliary Switch | Yes |
| Number of Circuits | 1 |
| Input Signal | 0-10 VDC, 0-20 mA, 0-5 VDC, 4-20 mA |
| Input Polarity | DC |
| Output Voltage | 24-530 VAC |
| Nominal Output Voltage | 208 VAC, 277 VAC, 347 VAC, 380 VAC, 415 VAC, 48 VAC, 575 VAC, 120 VAC, 240 VAC, 24 VAC, 480 VAC |
| Current Rating | 40 A |
| Transient Overvoltage | 1,200 V |
| Termination | Screw Terminal |
| Output Type | SCR AC Switch |
| Switching Type | Zero Cross |
| Integral Heat Sink | No |
| MOV | Yes |
| Snubber | No |
| Comments | With Load Interrupt Alarm |
| Net Weight | 0.4409 lbs |
| Gross Weight | 0.4409 lbs |
