KSD2413M Littelfuse Relays, KSD2 Series, Interval Timer, 120VAC, 3 Minute,
MFG Item Number
KSD2413M
Littelfuse

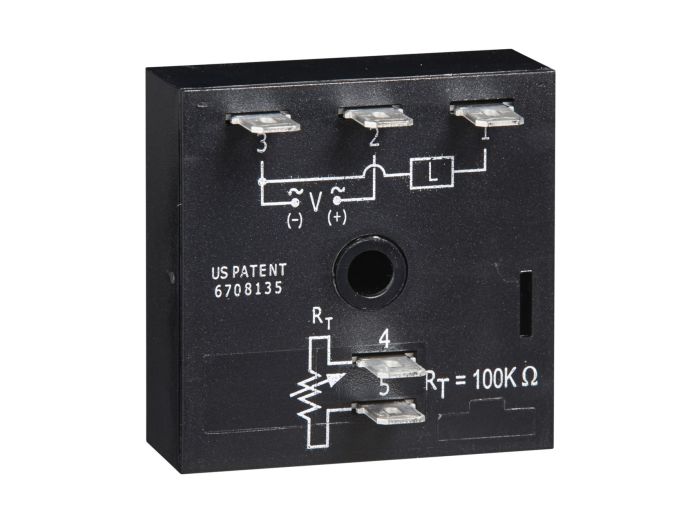

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

KSD2413M Littelfuse Relays, KSD2 Series, Interval Timer, 120VAC, 3 Minute,

MFG Item Number
KSD2413M
Littelfuse
Series
KSD2
More specs

Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Request Lead Time

Description

Relays, KSD2 Series
Item #
KSD2413M
Interval Timer, 120VAC, 3 Minute,

KSD2 Series Information

  • Fixed or Adjustable Delays from 0.1s‑1000m
  • ±0.5% Repeat Accuracy
  • ±5% Factory Calibration
  • 24, 120, or 230VAC
  • 1A, Solid‑State Output
The KSD2 Series is designed for general purpose commercial and industrial applications where a small, cost effective, reliable, solid‑state timer is required. The factory calibration for fixed time delays is within 5% of the target time delay. The repeat accuracy, under stable conditions, is 0.5% of the selected time delay. This series is designed for input voltages of 24, 120 or 230VAC. Time delays of 0.1 seconds to 1000 minutes are available in 6 ranges. The output is rated 1A steady and 10A inrush. The modules are totally solid state and encapsulated to protect the electronic circuitry. An excellent choice for most OEM pulse shaping, maximum run time, and other process control applications.

Operation (Interval): Upon application of input voltage, the time delay begins. The output energizes during the time delay. At the end of the time delay, the output de‑energizes and remains de‑energized until input voltage is removed. Reset: Removing input voltage resets the time delay and the output.

  • Encapsulated

Links

Specifications

Specifications
Manufacturer Part Number KSD2413M
Manufacturer Littelfuse
Product Series KSD2
Family Series Littelfuse Relays, KSD2 Series
Description Interval Timer, 120VAC, 3 Minute, Fixed
Operation Interval
Contacts 1NO
Mounting Surface
Time Range Adjustment Fixed
Timing Range 3 Min
Max Time 3 Min
Time Tolerance 5 %
Coil Voltage 120 VAC
Nominal Coil Voltage 120 VAC
Contact Rating 1 A
Termination 0.250 in Flat Blade
Approvals CE, CSA, UL
Net Weight 0.15 lbs
Gross Weight 0.15 lbs
