RS4A11 Littelfuse Relays, RS Series, Pulse Generator, 120VAC, 0.1-102.3
MFG Item Number
RS4A11
Littelfuse

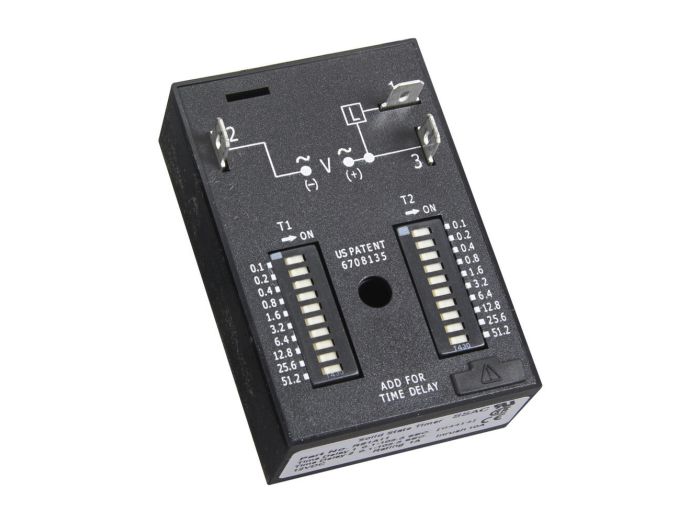

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

RS4A11 Littelfuse Relays, RS Series, Pulse Generator, 120VAC, 0.1-102.3

MFG Item Number
RS4A11
Littelfuse
Series
RS
More specs
This item cannot be canceled or returned

Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Request Lead Time

Description

Relays, RS Series
Item #
RS4A11
Pulse Generator, 120VAC, 0.1-102.3

RS Series Information

  • Accurate, Reliable, Recycling Timer
  • Switch Settable Time Delays‑Both Times Adjustable
  • ±0.1% Repeat Accuracy
  • ±2% Setting Accuracy
  • 0.1s‑102h in 4 Ranges
The RS Series is a solid‑state, encapsulated, recycling timer designed for tough industrial environments. It is used by many testing labs as a life cycle tester; by others as a cycle controller. The RS Series has separate DIP switch adjustments for the on delay and the off delay. These make accurate adjustment possible the first time, every time. Time delays of 0.1 seconds to 1023 hours are available in 4 ranges.

Operation (Recycling ‑ ON Time First) Upon application of input voltage, the output energizes and the T1 ON time begins. At the end of the ON time, the output de‑energizes and the T2 OFF time begins. At the end of the OFF time, the output energizes and the cycle repeats as long as input voltage is applied. Reset: Removing input voltage resets the output and time delays, and returns the sequence to the ON time.

Operation (Recycling ‑ OFF Time First) Upon application of input voltage, the T2 OFF time begins. At the end of the OFF time, the output energizes and the T1 ON time begins. At the end of the ON time, the output de‑energizes and the cycle repeats as long as input voltage is applied. Reset: Removing input voltage resets the output and time delays, and returns the sequence to the OFF time.

  • 12 to 230V in 5 Options
  • 1A, Solid‑State Output
  • Totally Solid State and Encapsulated

Links

Specifications

Specifications
Manufacturer Part Number RS4A11
Manufacturer Littelfuse
Product Series RS
Family Series Littelfuse Relays, RS Series
Description Pulse Generator, 120VAC, 0.1-102.3 Seconds, RS Digi-Set Timing Module, Pulse Generator
Operation Repeat Cycle
Contacts Solid State
Mounting Surface
Time Range Adjustment Onboard
Adjustment Operator DIP Switch
Timing Range 0.1-102.3 s (ON), 0.1-102.3 s (OFF)
Max Time 102.3 s
Coil Voltage 120 VAC
Nominal Coil Voltage 120 VAC
Contact Rating 1 A
Termination 0.250 in Flat Blade
Approvals CE, CSA, UL
Comments ON Time First
Net Weight 0.205 lbs
Gross Weight 0.225 lbs
