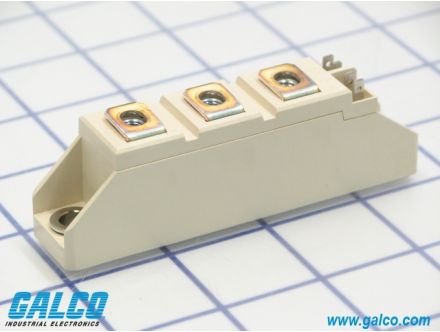

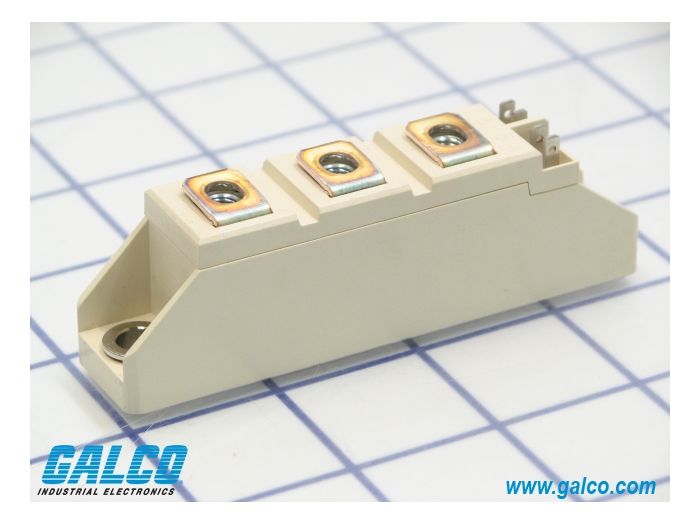

SKKT92B16E
Semikron Power Modules, SKK Series
SKKT92B16E
Semikron Power Modules, SKK Series
PMOD, Dual-SCR, 1600V, 95A
Item Number
SKKT92B16E
MFG Item Number
230B1689
Series
More specs
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Accessories
Description
Power Modules, SKK Series
Item #
SKKT92B16E
PMOD, Dual-SCR, 1600V, 95A
SKK Series Information
- Seven Standard SCR and Diode Circuits
- Blocking Voltages to 1800 Volts
- 1000 v/us dv/dt Available
- 3000 Vrms Isolation
- Industry Standard Packages
These SCR and diode modules come in industry standard packages offering seven different circuits. The modules can be used individually or as power control building blocks. Their high thermal efficiency assures long life and reliable performance. Seven different package sizes allow for a maximum output current of 1180 amps for standard diode modules and 360 amps for fast recovery versions. Blocking voltages are available as high as 2200 volts for standard diodes and 1700 volts for fast recovery modules.
- Common Cathode and Common Anode configurations available
Specifications
| Manufacturer Part Number | 230B1689 |
|---|---|
| Manufacturer | Semikron |
| Product Series | SKK |
| Family Series | Semikron Power Modules, SKK Series |
| Description | PMOD, Dual-SCR, 1600V, 95A, pin 7 is used for the gate (G2) and the pin 6 is used for the auxiliary cathode (HK2) |
| Circuit | SCR Doubler w/ aux Cathode |
| It (avg) | 95 A |
| Vrrm | 1,600 V |
| Tq | 100 µs |
| Igt | 150 A |
| dv/dt (V/microseconds) | 1,000 |
| Aux. Cathode(s) | Yes |
| Varistor | No |
| Free Wheeling Diode | No |
| Thermistor | No |
| Package Type | SEMIPACK1 |
| Nominal Height | 30 mm |
| Nominal Width | 20 mm |
| Nominal Depth | 93 mm |
| Approvals | UR |
| Net Weight | 0.2094 lbs |
| Gross Weight | 0.2094 lbs |
