TD-71622 Macromatic Relays, TD-7 Series, Off Delay Timer, 120VAC/DC,

MFG Item Number
TD-71622
Macromatic

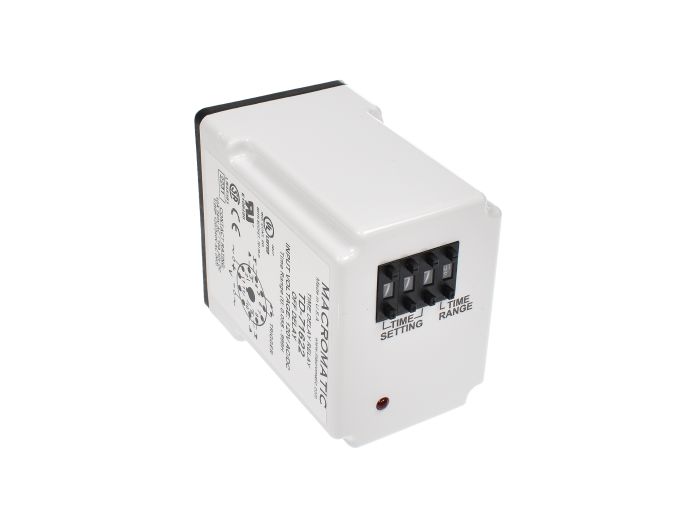

main product photo

TD-71622 Macromatic Relays, TD-7 Series, Off Delay Timer, 120VAC/DC,

MFG Item Number
TD-71622
Macromatic
Series
TD-7
More specs
This item cannot be canceled or returned

Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Request Lead Time

Description

Relays, TD-7 Series
Item #
TD-71622
Off Delay Timer, 120VAC/DC,

TD-7 Series Information

  • 10 Selectable modes
  • Pushbutton thumbwheels
  • Standard 11 pin octal socket
The TD‑7 series offers an easy and accurate way to select a function and any time delay between 50 ms and 999 hours. Programming is accomplished by using a pushbutton thumbwheel to select one of seven built‑in time ranges and three pushbutton thumbwheels to digitally set the time delay required. This method provides a greater accuracy than is found on other units with an analog potentiometer.
  • LED Indicates timing mode
  • 10A DPDT output contacts

Links

Specifications

Specifications
Manufacturer Part Number TD-71622
Manufacturer Macromatic
Product Series TD-7
Family Series Macromatic Relays, TD-7 Series
Description Off Delay Timer, 120VAC/DC, 0.5S-999H Range, Digital Prog, 11 Pin Circ Base, w/Trigger
Operation Off Delay
Contacts DPDT
Mounting Socket
Status Indicator LED
Time Range Adjustment Onboard
Adjustment Operator Pushbutton Thumb Wheel
Timing Range 0.05 s-999 Hrs
Max Time 999 Hrs
Nominal Coil Voltage 120 VAC, 125 VDC
AC Voltage 120 VAC
DC Voltage 120 VDC
Contact Rating 10 A
Termination 11 Pin
Approvals CE, CSA, UL
Net Weight 0.265 lbs
Gross Weight 0.265 lbs
