TDB120ALD
Littelfuse Relays, TDB Series

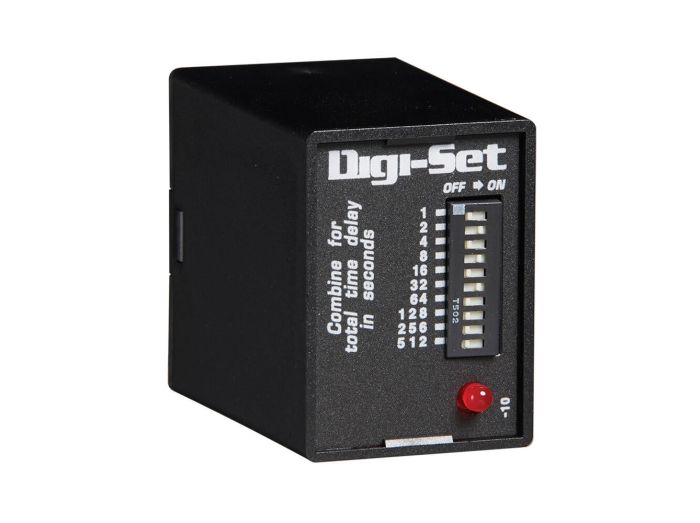

TDB120ALD Littelfuse Relays, TDB Series, Off Delay Timer, 120VAC, 1-1023 Sec,
MFG Item Number
TDB120ALD
Series
More specs
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Relays, TDB Series
Item #
TDB120ALD
Off Delay Timer, 120VAC, 1-1023 Sec,
TDB Series Information
- Switch Settable Time Delay
- Three Time Ranges from 0.1s‑10,230s
- ±0.1% Repeat Accuracy
- ±2% Setting Accuracy
- 10A, SPDT or DPDT Output Contacts
Operation (Delay‑on‑Break): Input voltage must be applied to the input before and during timing. Upon closure of the initiate switch, the output relay is energized. The time delay begins when the initiate switch is opened (trailing edge triggered). The output remains energized during timing. At the end of the time delay, the output de‑energizes. The output will energize if the initiate switch is closed when input voltage is applied. Reset: Reclosing the initiate switch during timing resets the time delay. Loss of input voltage resets the time delay and output.
- LED Indication
Specifications
| Manufacturer Part Number | TDB120ALD |
|---|---|
| Manufacturer | Littelfuse |
| Product Series | TDB |
| Family Series | Littelfuse Relays, TDB Series |
| Description | Off Delay Timer, 120VAC, 1-1023 Sec, DIP Switch Selectable, 1 Sec Incr, 11-Pin Circ Base, DPDT 10A Max Load |
| Operation | Off Delay |
| Contacts | DPDT |
| Mounting | Socket |
| Status Indicator | LED |
| Time Range Adjustment | Onboard |
| Adjustment Operator | DIP Switch |
| Timing Range | 1-1,023 s |
| Max Time | 1,023 s |
| Coil Voltage | 120 VAC |
| Nominal Coil Voltage | 120 VAC |
| Contact Rating | 10 A |
| Termination | 11 Pin |
| Approvals | CE, CSA, UL |
| Net Weight | 0.375 lbs |
| Gross Weight | 0.375 lbs |
