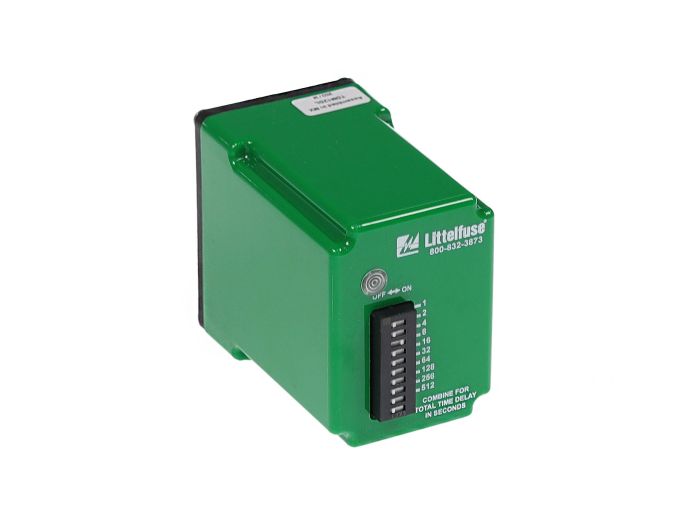

TDM12DL
Littelfuse Relays, TDM Series
TDM12DL
Littelfuse Relays, TDM Series
Time Delay Relay, 12VDC, On Delay,
MFG Item Number
TDM12DL
Series
More specs
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Relays, TDM Series
Item #
TDM12DL
Time Delay Relay, 12VDC, On Delay,
TDM Series Information
- Switch Settable Time Delay
- Three Time Ranges from 0.1s‑10,230s
- +/‑ 0.1% Repeat Accuracy
- +/‑ 2% Setting Accuracy
- 10A, DPDT Output Contacts
Operation (Delay‑on‑Make): Upon application of input voltage, the time delay begins. The output is de‑energized before and during the time delay. At the end of the time delay, the output relay energizes and remains energized until input voltage is removed. Reset: Removing input voltage resets the time delay and output.
- LED Indication
Specifications
| Manufacturer Part Number | TDM12DL |
|---|---|
| Manufacturer | Littelfuse |
| Product Series | TDM |
| Family Series | Littelfuse Relays, TDM Series |
| Description | Time Delay Relay, 12VDC, On Delay, DPDT 10A Output, 8-Pin Octal Base, 1-1023 Sec in 1 Sec Increments |
| Operation | On Delay |
| Contacts | DPDT |
| Mounting | Socket |
| Status Indicator | LED |
| Time Range Adjustment | Onboard |
| Adjustment Operator | DIP Switch |
| Timing Range | 1-1,023 s |
| Max Time | 1,023 s |
| Coil Voltage | 12 VDC |
| Nominal Coil Voltage | 12 VDC |
| Contact Rating | 10 A |
| Termination | 8 Pin |
| Approvals | CE, CSA, UL |
| Net Weight | 0.23 lbs |
| Gross Weight | 0.28 lbs |
