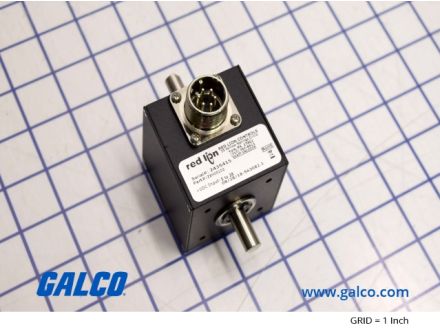

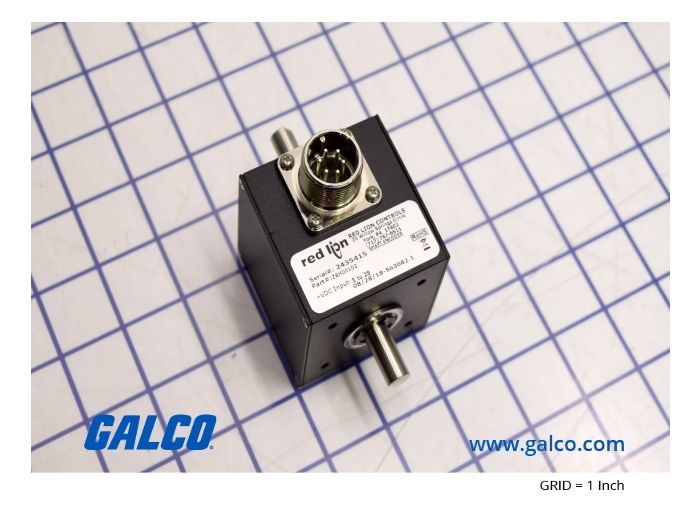

ZBH00102
Red Lion Encoders, ZBH Series
ZBH00102 Red Lion Encoders, ZBH Series, ZB H 10PPR DUAL CHNL
MFG Item Number
ZBH00102
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Encoders, ZBH Series
Item #
ZBH00102
ZB H 10PPR DUAL CHNL
ZBH Series Information
- Current Sink Outputs
- High Pulse Per Revolution (Ppr) Rates
- Quadrature Output
- Available With Ms And M12 Connectors
The units contain an L.E.D. light source and a photo sensor that scans a shaft‑mounted, slotted disc. An internal pulse‑shaping amplifier circuit delivers a rectangular pulse signal from the current sinking output in response to the passing slots as it rotates. They can be direct‑coupled to a machine shaft by means of a flexible‑bellows, spring, or rubber sleeve type coupling that allows for axial and radial misalignment. They can also be coupled with light instrument timing‑belts. Timing‑belt drives also allow convenient gear‑up or gear‑down speed ratio changes that can be useful for obtaining non‑standard PPR rates.
Specifications
| Manufacturer Part Number | ZBH00102 |
|---|---|
| Manufacturer | Red Lion |
| Product Series | ZBH |
| Family Series | Red Lion Encoders, ZBH Series |
| Description | ZB H 10PPR DUAL CHNL |
| Resolution (PPR) | 10 |
| Incremental Channels | Dual |
| Shaft/Bore Size | 3/8 " |
| Shaft Seal | No |
| Shaft Type | Double Ended |
| Bolt Circle | 2 " |
| Input Voltage | 5-24 VDC |
| Output Type | Quadrature |
| Output Voltage | 1-30 VDC |
| Electrical Output Type | Open Collector |
| Termination | 6 Pin MS Connector |
| Mating Connector | Not Included |
| Status Indicator | No |
| Sensing | Optical |
| Bearings | Yes |
| Operating Temperature | 0-100 °C |
| Mounting | Shafted |
| Net Weight | 0.605 lbs |
| Gross Weight | 0.795 lbs |
