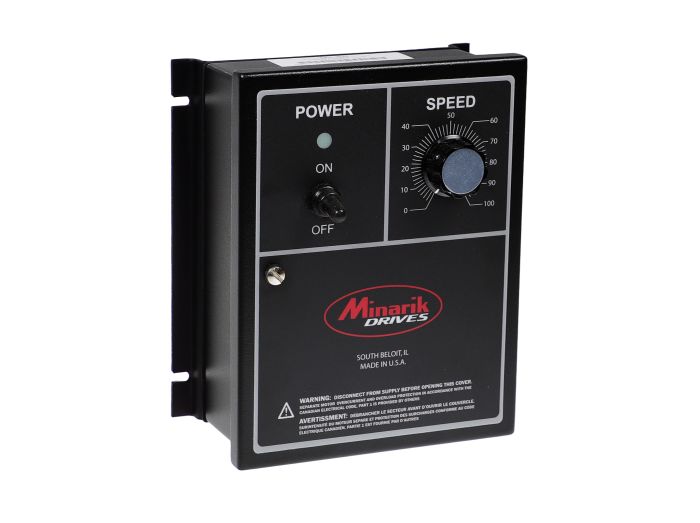

C4XL3025
Minarik Drives Drives, XL Series
C4XL3025
Minarik Drives Drives, XL Series
Drive, DC, 3A, 115/230VAC Input,
MFG Item Number
C4XL3025
Series
More specs
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Repair Yours
Is something broken or in need of attention? Start your repair request here, and we'll take care of it
Description
Drives, XL Series
Item #
C4XL3025
Drive, DC, 3A, 115/230VAC Input,
XL Series Information
- Speed Range and Regulation: 1% Regulation over 100:1 Speed Range
- User Adjustable Calibration Pots: IR Compensation, Min Speed, Max Speed, Current Limit, Acceleration, Deceleration and Jog (XL3300A and C4XL3200A Only)
- Diagnostic LEDs: LEDs for Power and Current Limit Status
- Stopping Mode: Inhibit (N/O) for Coasting to a Stop on All Models
- Cage Clamp Terminal Block: Quick and Easy Wire Terminations Reduce Installation Time
MOSFET power devices switch at a high frequency above the audible range, to provide fast circuit response and a constant 1.05 form factor over the entire 100:1 speed range. Highly‑efficient XL drives provide cool, quiet motor operation with extended brush life and low maintenance. For convenience, the drives have a cage‑clamp terminal block to make wiring easy. The XL3300A can jog motors from 0 ‑120% of rated speed with a separate trimmer pot.
- Additional Features: Dual Voltage AC Input, DC Field Supply, On Board Line Fuse, and Jog Mode on C4XL3200A and XL3300A
- Accessories: Heatsink 223‑0271. 201‑0024 Inhibit Plug with 18" Leads, DLC600 Digital Closed Loop Controller
Specifications
| Manufacturer Part Number | C4XL3025 |
|---|---|
| Manufacturer | Minarik Drives |
| Product Series | XL |
| Family Series | Minarik Drives Drives, XL Series |
| Description | Drive, DC, 3A, 115/230VAC Input, N4X, Pot Incl. |
| AC Voltage | 104-127 VAC, 207-253 VAC |
| Output Armature Voltage (DC) | 0-130 VDC, 0-240 VDC |
| Phase | 1 |
| Output Field Current (DC) | 1 A |
| Operating Temperature | 50-104 °F |
| Max Armature Current (DC) | 3 A |
| Nominal Input Voltage | 120 VAC, 208 VAC, 240 VAC |
| Output Field VDC | 100 VDC, 200 VDC, 50 VDC |
| Operator Controls | Built In |
| NEMA Rating | NEMA 4X |
| Approvals | CE |
| Comments | Potentiometer Included. |
| Nominal Armature VDC | 36 VDC, 12 VDC, 24 VDC, 250 VDC, 48 VDC, 90 VDC, 180 VDC |
| Net Weight | 4.535 lbs |
| Gross Weight | 5.235 lbs |
