Dynapar Encoders, HS35iQ Series
HS35IQ0102486P71R1
Dynapar Encoders, HS35iQ Series
Encoder, 5/8in Bore Size; 1024 PPR
MFG Item Number
HS35IQ0102486P71R1
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Accessories
Description
Encoders, HS35iQ Series
Item #
HS35IQ0102486P71R1
Encoder, 5/8in Bore Size; 1024 PPR
HS35iQ Series Information

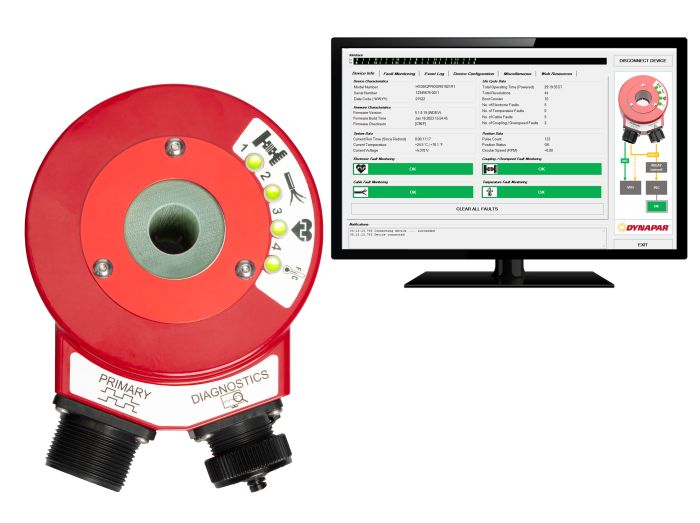

Dynapar HS35iQ Smart Encoder is a heavy-duty incremental ABZ encoder with onboard diagnostics that cut downtime and speed root-cause analysis. With PulseIQ™ you get programmable configuration plus predictive maintenance data—ideal for steel, paper, mining, and food & beverage lines.
- Onboard diagnostics: fault LEDs + digital fault output to PLC/HMI
- Logged events: time-stamped fault history over USB for PM programs
- Programmable encoder: up to 20,000 PPR, configurable A/B phasing
- Flexible outputs: selectable TTL or HTL voltage levels
- Index control: set Z index position, polarity, and gating
- Cable fault detection: identify opens/shorts and loose conductors fast
- Overspeed & thermal monitoring: protect mechanics and electronics
- Rugged design: heavy-duty housing, optional IP67, high shock/vibration
- Integration-ready: map alarm bit to HMI; validate ABZ signal integrity
- Operations impact: reduce unnecessary encoder swaps and cut downtime
Specifications
| Manufacturer Part Number | HS35IQ0102486P71R1 |
|---|---|
| Manufacturer | Dynapar |
| Product Series | HS35iQ |
| Family Series | Dynapar Encoders, HS35iQ Series |
| Description | HS35iQ Encoder, 5/8in Bore Size; 1024 PPR; 4.5in C-Face Tether Kit w/ Cover; Differential ABZ (7272); 10 pin MS Connector + Mating |
| Resolution (PPR) | 20,000 |
| Incremental Channels | Dual with Complimentary |
| Indexed (Marker) | Yes |
| Shaft/Bore Size | 5/8 " |
| Shaft Type | Hollow |
| Bolt Circle | 3/8 " |
| Input Voltage | 5-26 VAC |
| Output Type | Differential |
| Output Voltage | 5-26 VAC |
| Electrical Output Type | Line Driver |
| Termination | 10 Pin Connector |
| Mating Connector | Included |
| Status Indicator | Yes |
| Explosion Proof | No |
| Signal Direction | Bidirectional |
| Commutating | No |
| Sensing | Optical |
| Bearings | Yes |
| Operating Temperature | -40-85 °C |
| Mounting | Hollowshaft |
| Protection Rating | IP67 |
| Approvals | CE, UKCA |
| Net Weight | 2.315 lbs |
| Gross Weight | 4.54 lbs |
