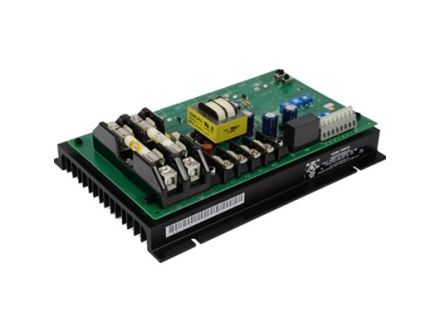

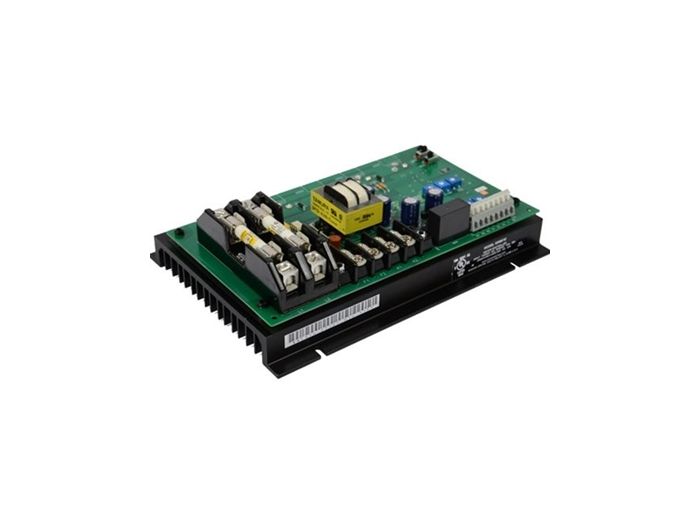

MM501U

Minarik Drives Drives, MM500 Series

Drive, Pot Incl.

MFG Item Number

MM501U

Series

MM500

More specs

Request Lead Time

View Alternative Products

Repair Yours

Is something broken or in need of attention? Start your repair request here, and we'll take care of it

Request Repair

Description

Drives, MM500 Series

Item #

MM501U

Drive, Pot Incl.

MM500 Series Information

Isolated Inputs: Accepts Floating or Grounded Signals of 0‑10VDC or 4‑20mA for Controlling the Speed of the Motor. Burr‑Brown Isolation Provides .01% Linearity
Speed Range and Regulation: 1% Regulation Over 60:1 Speed Range. 0.1% Regulation Over 80:1 Speed Range with the Addition of a Tachometer for Feedback
User Adjustable Calibration Pots: IR Compensation, Min Speed (12 Turn), Max Speed (12 Turn), Current Limit, Acceleration, Deceleration and Tachometer
Diagnostic LEDs: LEDs for Power, Run (MM501U Only) and Current Limit Status
Stopping Modes: Start/Stop Circuitry for Three Wire Remote Pushbuttons or Two Wire Maintained Switches

The MM500 Series of dual‑voltage single quadrant SCR drives can control 90 or 180 VDC SCR brush‑type motors ranging from 1/20 HP through 5 HP. The MM501U drive has integrated isolation allowing it to precisely follow analog current or voltage signals from external devices or a potentiometer as a reference for motor speed control. This results in significant labor and material cost reduction compared to other systems employing a separate drive and isolation card.

Use the MM500 Series for a full featured, high end, great performing single quadrant DC drive.

Cage Clamp Terminal Block: Quick and Easy Wire Terminations Reduce Installation Time
Additional Features: Tachometer Feedback Mode and On Board Fusing

Links

Specifications

Specifications
Manufacturer Part Number	MM501U
Manufacturer	Minarik Drives
Product Series	MM500
Family Series	Minarik Drives Drives, MM500 Series
Description	Drive, Pot Incl.
Output Armature Voltage (DC)	0-90 VDC, 0-180 VDC
Phase	1
Output Field Current (DC)	1 A
Operating Temperature	50-122 °F
Max Armature Current (DC)	25 A
Nominal Input Voltage	120 VAC, 240 VAC
Output Field VDC	100 VDC, 200 VDC, 50 VDC
Feedback	Armature, Tachometer
Operator Controls	Built In
Approvals	CE, CSA, UL
Comments	1 to 2 1/2 Horsepower at 90 VDC or 2 to 5 Horsepower at 180 VDC. Potentiometer Included.
Nominal Armature VDC	36 VDC, 12 VDC, 24 VDC, 48 VDC, 90 VDC, 180 VDC
Net Weight	3.72 lbs
Gross Weight	4.68 lbs
