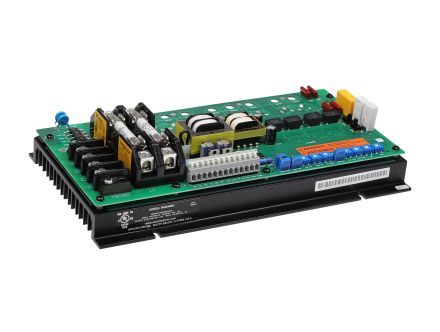

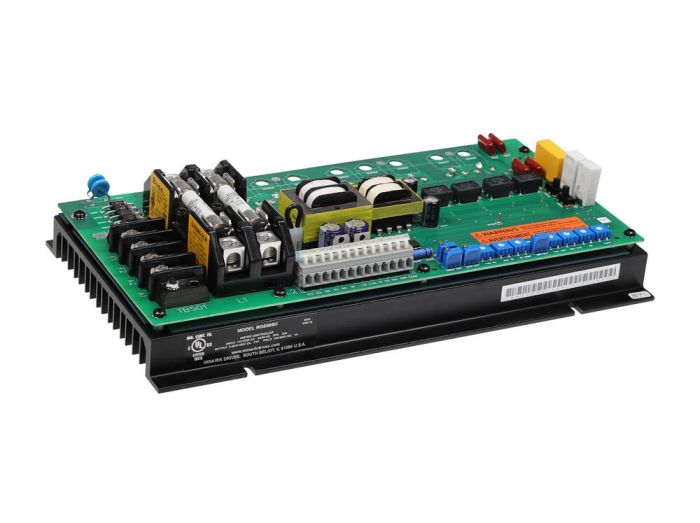

RG5500U
Minarik Drives Drives, RG5500U Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
RG5500U Minarik Drives Drives, RG5500U Series, Drive, Pot Incl.
MFG Item Number
RG5500U
Series
More specs
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Repair Yours
Is something broken or in need of attention? Start your repair request here, and we'll take care of it
Description
Drives, RG5500U Series
Item #
RG5500U
Drive, Pot Incl.
RG5500U Series Information
- Isolated Inputs: Accepts Floating or Grounded Signals of ‑250 to +250 VDC, ‑25 to +25 VDC, ‑10 to +10 VDC or 4‑20mA. Burr‑Brown Isolation has .01% Linearity
- 4Q Reversing: Regenerative/4 Quadrant Drives have the Ability to Perform Quick, Contactorless Reversing On‑the‑Fly
- Speed Range and Regulation: 1% Regulation over 50:1 Speed Range. 0.1% Regulation over 60:1 Speed Range with the Addition of a Tachometer. Armature or Tachometer Mode is Switch Selectable
- User Adjustable Calibration Pots: IR Compensation, Min Speed, Max Speed, Forward Acceleration, Reverse Acceleration, Forward Torque, Reverse Torque, Deadband, Input Adjust (for Speed Reference Input) and Tachometer
- Stopping Modes: Inhibit (N/O) to Immediately Break to a Stop. RB1 and RB2 to Decelerate to a Stop
Applications with overhauling loads, rapid deceleration, basic positioning, and high duty cycle reversing or braking benefit from these versatile regenerative drives.
The RG5500U is excellent for leader/follower applications as well. It accepts almost any external signal input (see Isolated Inputs).
The RG5500U drive is conservatively rated at 25 Amps and is your answer for a full‑featured regenerative drive requirement up to 5 HP. The robust 3 Amp field makes the drive a suitable replacement for older shunt wound motor drive systems.
- Cage Clamp Terminal Block: Quick and Easy Wire Terminations Reduce Installation Time
- Additional Features: On‑Board Fusing
Specifications
| Manufacturer Part Number | RG5500U |
|---|---|
| Manufacturer | Minarik Drives |
| Product Series | RG5500U |
| Family Series | Minarik Drives Drives, RG5500U Series |
| Description | Drive, Pot Incl. |
| AC Voltage | 104-127 VAC, 207-253 VAC |
| Input Current | 30 A |
| Output Armature Voltage (DC) | 0-90 VDC, 0-180 VDC |
| Phase | 1 |
| Operating Temperature | 50-122 °F |
| Max Armature Current (DC) | 25 A |
| Nominal Input Voltage | 120 VAC, 240 VAC |
| Output Field VDC | 100 VDC, 200 VDC, 50 VDC |
| Regen | Yes |
| Feedback | Armature, Tachometer |
| Operator Controls | Built In |
| Approvals | cUL, UL |
| Comments | Potentiometer Included. |
| Nominal Armature VDC | 36 VDC, 12 VDC, 24 VDC, 48 VDC, 90 VDC, 180 VDC |
| Net Weight | 4.7 lbs |
| Gross Weight | 5.405 lbs |
