TDB24DL
Littelfuse Relays, TDB Series

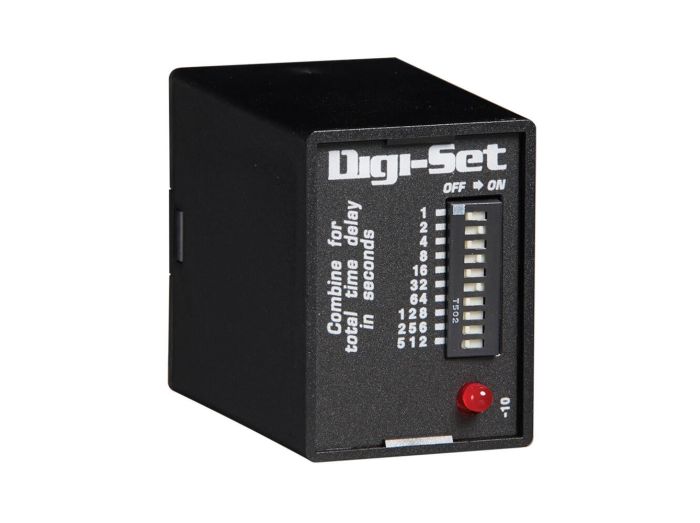

TDB24DL Littelfuse Relays, TDB Series, Off Delay Timer, 24VDC, 1-1023 Sec,
MFG Item Number
TDB24DL
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Relays, TDB Series
Item #
TDB24DL
Off Delay Timer, 24VDC, 1-1023 Sec,
TDB Series Information
- Switch Settable Time Delay
- Three Time Ranges from 0.1s‑10,230s
- ±0.1% Repeat Accuracy
- ±2% Setting Accuracy
- 10A, SPDT or DPDT Output Contacts
Operation (Delay‑on‑Break): Input voltage must be applied to the input before and during timing. Upon closure of the initiate switch, the output relay is energized. The time delay begins when the initiate switch is opened (trailing edge triggered). The output remains energized during timing. At the end of the time delay, the output de‑energizes. The output will energize if the initiate switch is closed when input voltage is applied. Reset: Reclosing the initiate switch during timing resets the time delay. Loss of input voltage resets the time delay and output.
- LED Indication
Specifications
| Manufacturer Part Number | TDB24DL |
|---|---|
| Manufacturer | Littelfuse |
| Product Series | TDB |
| Family Series | Littelfuse Relays, TDB Series |
| Description | Off Delay Timer, 24VDC, 1-1023 Sec, DIP Switch Selectable Time, 8-Pin Circular Base, SPDT 10A Output |
| Operation | Off Delay |
| Contacts | SPDT |
| Mounting | Socket |
| Status Indicator | LED |
| Time Range Adjustment | Onboard |
| Adjustment Operator | DIP Switch |
| Timing Range | 1-1,023 s |
| Max Time | 1,023 s |
| Coil Voltage | 24 VDC |
| Nominal Coil Voltage | 24 VDC |
| Contact Rating | 10 A |
| Termination | 8 Pin |
| Approvals | CE, CSA, UL |
| Net Weight | 0.3125 lbs |
| Gross Weight | 0.34 lbs |
