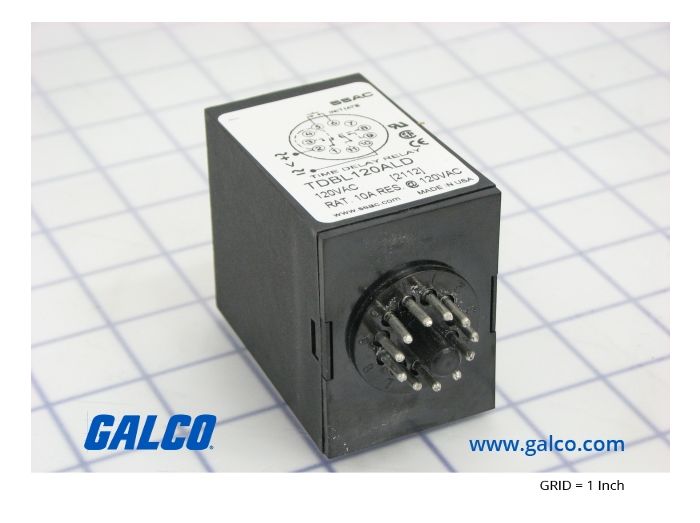

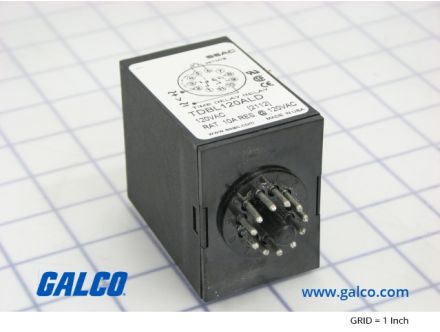

TDBL120ALD
Littelfuse Relays, TDBL Series
TDBL120ALD Littelfuse Relays, TDBL Series, TIME DELAY RELAY, OFF-DEL, 120VAC
MFG Item Number
TDBL120ALD
Series
More specs
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Relays, TDBL Series
Item #
TDBL120ALD
TIME DELAY RELAY, OFF-DEL, 120VAC
TDBL Series Information
- Switch Settable Time Delay
- Three Time Ranges from 0.1s‑10,230s
- ±0.1% Repeat Accuracy
- ±2% Setting Accuracy
- 10A, SPDT or DPDT Output Contacts
Operation (Delay‑on‑Break): Input voltage must be applied to the input before and during timing. Upon closure of the initiate switch, the output relay is energized. The time delay begins when the initiate switch is opened (trailing edge triggered). The output remains energized during timing. At the end of the time delay, the output de‑energizes. The output will energize if the initiate switch is closed when input voltage is applied. Reset: Reclosing the initiate switch during timing resets the time delay. Loss of input voltage resets the time delay and output.
- LED Indication
Specifications
| Manufacturer Part Number | TDBL120ALD |
|---|---|
| Manufacturer | Littelfuse |
| Product Series | TDBL |
| Family Series | Littelfuse Relays, TDBL Series |
| Description | TIME DELAY RELAY, OFF-DEL, 120VAC 0.1-102.3 SEC IN 0.1 SEC INCREMENTS 11-PIN ROUND PIN BASE |
| Operation | Off Delay |
| Contacts | DPDT |
| Mounting | Socket |
| Status Indicator | LED |
| Time Range Adjustment | Onboard |
| Adjustment Operator | DIP Switch |
| Timing Range | 0.1-102.3 s |
| Max Time | 102.3 s |
| Coil Voltage | 120 VAC |
| Nominal Coil Voltage | 120 VAC |
| Contact Rating | 10 A |
| Termination | 11 Pin |
| Approvals | CE, CSA, UL |
| Net Weight | 0.375 lbs |
| Gross Weight | 0.3965 lbs |
