TDMH120AL
Littelfuse Relays, TDMH Series

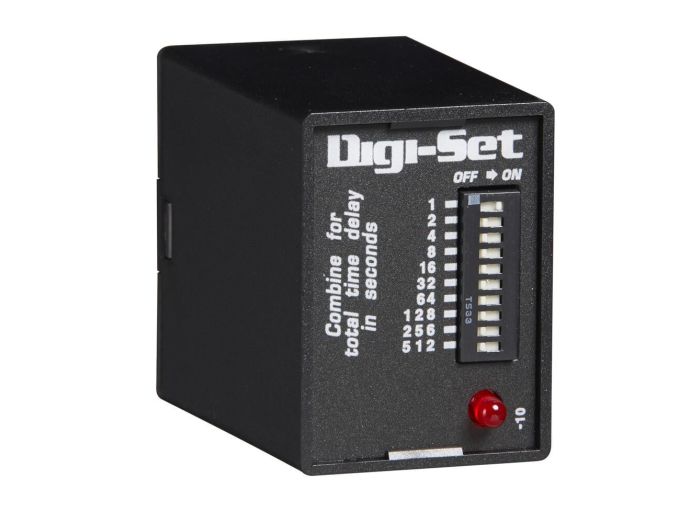

TDMH120AL Littelfuse Relays, TDMH Series, On Delay Timer, 120VAC, 10-10230 Sec
MFG Item Number
TDMH120AL
Series
More specs
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Relays, TDMH Series
Item #
TDMH120AL
On Delay Timer, 120VAC, 10-10230 Sec
TDMH Series Information
- Switch Settable Time Delay
- Three Time Ranges from 0.1s‑10,230s
- +/‑ 0.1% Repeat Accuracy
- +/‑ 2% Setting Accuracy
- 10A, DPDT Output Contacts
Operation (Delay‑on‑Make): Upon application of input voltage, the time delay begins. The output is de‑energized before and during the time delay. At the end of the time delay, the output relay energizes and remains energized until input voltage is removed. Reset: Removing input voltage resets the time delay and output.
- LED Indication
Specifications
| Manufacturer Part Number | TDMH120AL |
|---|---|
| Manufacturer | Littelfuse |
| Product Series | TDMH |
| Family Series | Littelfuse Relays, TDMH Series |
| Description | On Delay Timer, 120VAC, 10-10230 Sec DIP Switch Selectable Time, DPDT 10A Output, 8-Pin Circular Base, w/LED |
| Operation | On Delay |
| Contacts | DPDT |
| Mounting | Socket |
| Status Indicator | LED |
| Time Range Adjustment | Onboard |
| Adjustment Operator | DIP Switch |
| Timing Range | 10-10,230 s |
| Max Time | 10,230 s |
| Coil Voltage | 120 VAC |
| Nominal Coil Voltage | 120 VAC |
| Contact Rating | 10 A |
| Termination | 8 Pin |
| Approvals | CE, CSA, UL |
| Net Weight | 0.325 lbs |
| Gross Weight | 0.395 lbs |
