TDR4A33
Littelfuse Relays, TDR Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

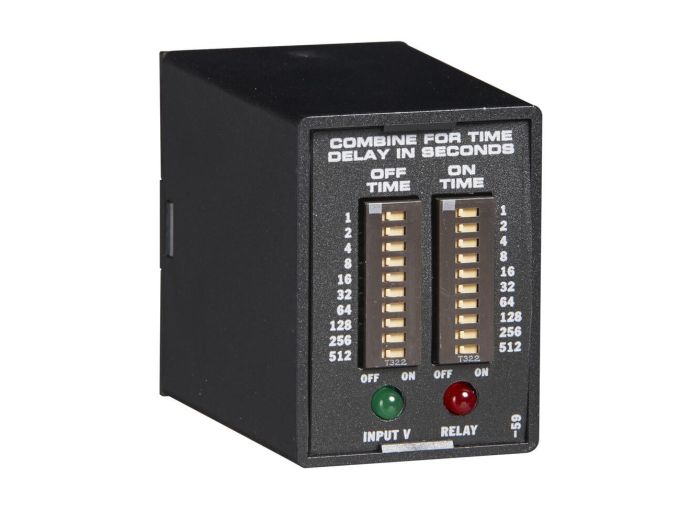

TDR4A33 Littelfuse Relays, TDR Series, Time Delay Relay, Recycler, 120VAC
MFG Item Number
TDR4A33
Series
More specs
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Relays, TDR Series
Item #
TDR4A33
Time Delay Relay, Recycler, 120VAC
TDR Series Information
- Switch Settable Time Delays ‑ Both Times Adjustable
- 0.1s‑2.84h in 3 Ranges
- ±0.1% Repeat Accuracy
- ±2% Setting Accuracy
- Isolated, 10A, DPDT Output Contacts
Operation (Recycling ‑ ON Time First): Upon application of input voltage, the green LED glows, the output relay is energized, the red LED glows, and the T1 ON time begins. At the end of the ON time, the output de‑energizes, the red LED turns OFF and the T2, OFF time begins. At the end of the OFF time, the output relay energizes and the cycle repeats as long as input voltage is applied. Reset: Removing input voltage resets the output and time delays, and returns the sequence to the first delay.
Operation (Recycling ‑ OFF Time First): Upon application of input voltage, the green LED glows, the T1 OFF time begins, the load is OFF. At the end of the OFF time, the T2 ON time begins, the load energizes, and the red LED glows. At the end of the ON time the load de‑energizes and the red LED turns OFF. The cycle repeats until input voltage is removed. Reset: Removing input voltage resets the output and the sequence to the OFF time.
- Octal Plug‑in Base Connection
Specifications
| Manufacturer Part Number | TDR4A33 |
|---|---|
| Manufacturer | Littelfuse |
| Product Series | TDR |
| Family Series | Littelfuse Relays, TDR Series |
| Description | Time Delay Relay, Recycler, 120VAC On time First, 10-10,230 Sec On/Off DIP Switch Selectable, DPDT 10A Out |
| Operation | Repeat Cycle |
| Contacts | DPDT |
| Mounting | Socket |
| Time Range Adjustment | Onboard |
| Adjustment Operator | DIP Switch |
| Timing Range | 10-10,230 s (ON), 10-10,230 s (OFF) |
| Max Time | 10,230 s |
| Coil Voltage | 120 VAC |
| Nominal Coil Voltage | 120 VAC |
| Contact Rating | 10 A |
| Termination | 8 Pin |
| Approvals | CE, CSA, UL |
| Comments | ON Time First |
| Net Weight | 0.275 lbs |
| Gross Weight | 0.35 lbs |
