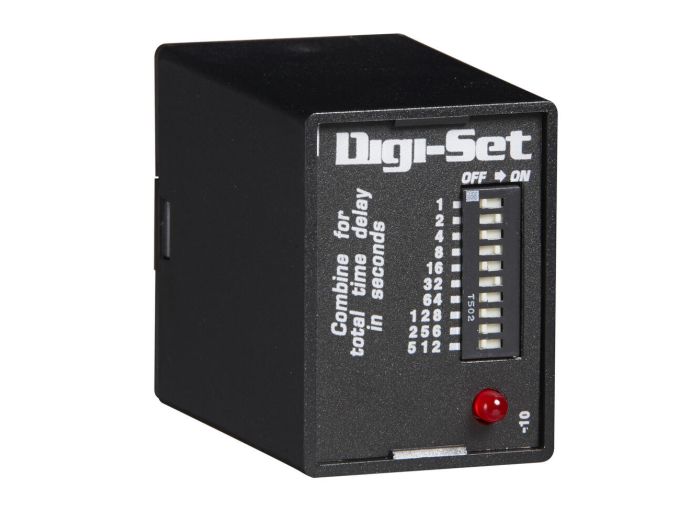

TDS120AL
Littelfuse Relays, TDS Series
TDS120AL
Littelfuse Relays, TDS Series
Single Shot/Interval Timer, 120VAC,
MFG Item Number
TDS120AL
Series
More specs
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Relays, TDS Series
Item #
TDS120AL
Single Shot/Interval Timer, 120VAC,
TDS Series Information
- Switch Settable Time Delay
- Three Time Ranges from 0.1s‑10,230s
- ±0.1% Repeat Accuracy
- ±2% Setting Accuracy
- 10A, SPDT or DPDT Output Contacts
Operation (Single Shot): Input voltage must be applied to the input before and during timing. Upon momentary or maintained closure of the initiate switch (leading edge triggered), the output relay energizes for a measured interval of time. At the end of the delay, the output de‑energizes. Opening or reclosing the initiate switch during timing has no affect on the time delay. The output will energize if the initiate switch is closed when input voltage is applied. Reset: Reset occurs when the time delay is complete and the initiate switch is opened. Loss of input voltage resets the time delay and output.
- LED Indication
Specifications
| Manufacturer Part Number | TDS120AL |
|---|---|
| Manufacturer | Littelfuse |
| Product Series | TDS |
| Family Series | Littelfuse Relays, TDS Series |
| Description | Single Shot/Interval Timer, 120VAC, 1-1023 Sec Adj in 1 Sec Increments, SPDT 10A Output, 8-Pin Octal Base |
| Operation | One-Shot |
| Contacts | SPDT |
| Mounting | Socket |
| Status Indicator | LED |
| Time Range Adjustment | Onboard |
| Adjustment Operator | DIP Switch |
| Timing Range | 1-1,023 s |
| Max Time | 1,023 s |
| Coil Voltage | 120 VAC |
| Nominal Coil Voltage | 120 VAC |
| Contact Rating | 10 A |
| Termination | 8 Pin |
| Approvals | CE, CSA, UL |
| Net Weight | 0.315 lbs |
| Gross Weight | 0.3456 lbs |
