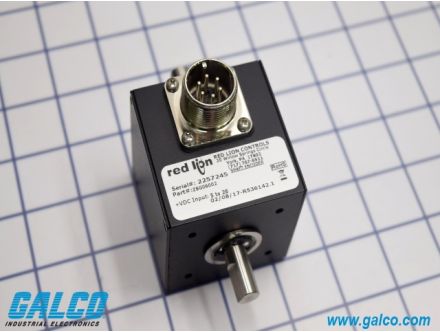

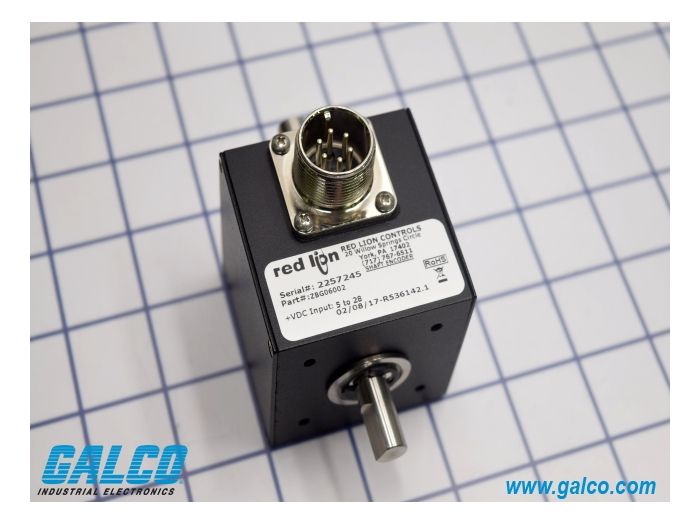

ZBG06002
Red Lion Encoders, ZBG Series
ZBG06002
Red Lion Encoders, ZBG Series
ZB G 600PPR SINGLE CHNL
MFG Item Number
ZBG06002
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Encoders, ZBG Series
Item #
ZBG06002
ZB G 600PPR SINGLE CHNL
ZBG Series Information
- Current Sink Outputs
- High Pulse Per Revolution (Ppr) Rates
- Quadrature Output
- Available With Ms And M12 Connectors
The units contain an L.E.D. light source and a photo sensor that scans a shaft‑mounted, slotted disc. An internal pulse‑shaping amplifier circuit delivers a rectangular pulse signal from the current sinking output in response to the passing slots as it rotates. They can be direct‑coupled to a machine shaft by means of a flexible‑bellows, spring, or rubber sleeve type coupling that allows for axial and radial misalignment. They can also be coupled with light instrument timing‑belts. Timing‑belt drives also allow convenient gear‑up or gear‑down speed ratio changes that can be useful for obtaining non‑standard PPR rates.
Specifications
| Manufacturer Part Number | ZBG06002 |
|---|---|
| Manufacturer | Red Lion |
| Product Series | ZBG |
| Family Series | Red Lion Encoders, ZBG Series |
| Description | ZB G 600PPR SINGLE CHNL |
| Resolution (PPR) | 600 |
| Incremental Channels | Single |
| Shaft/Bore Size | 3/8 " |
| Shaft Seal | No |
| Shaft Type | Double Ended |
| Bolt Circle | 2 " |
| Input Voltage | 5-28 VDC |
| Output Type | Current Sink |
| Output Voltage | 1-30 VDC |
| Electrical Output Type | Open Collector |
| Termination | 6 Pin MS Connector |
| Mating Connector | Not Included |
| Status Indicator | No |
| Sensing | Optical |
| Bearings | Yes |
| Operating Temperature | 0-85 °C |
| Mounting | Shafted |
| Net Weight | 0.59 lbs |
| Gross Weight | 0.78 lbs |
