TDM230AL
Littelfuse Relays, TDM Series

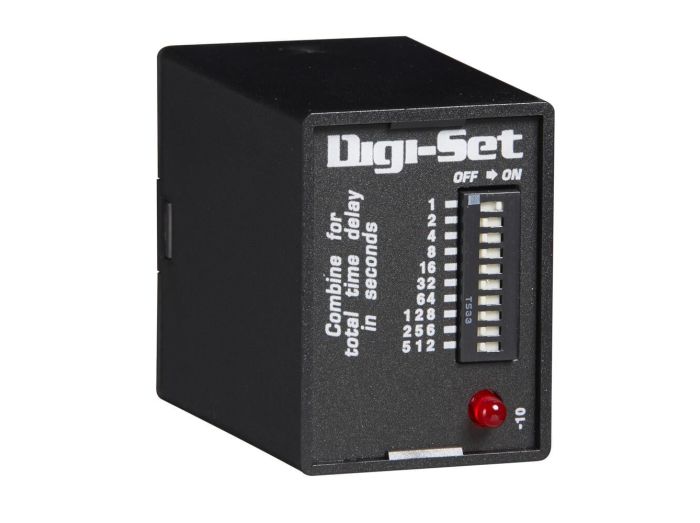

TDM230AL Littelfuse Relays, TDM Series, On Delay Timer, 230VAC, 1-1023 Sec,
MFG Item Number
TDM230AL
Series
More specs
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Relays, TDM Series
Item #
TDM230AL
On Delay Timer, 230VAC, 1-1023 Sec,
TDM Series Information
- Switch Settable Time Delay
- Three Time Ranges from 0.1s‑10,230s
- +/‑ 0.1% Repeat Accuracy
- +/‑ 2% Setting Accuracy
- 10A, DPDT Output Contacts
Operation (Delay‑on‑Make): Upon application of input voltage, the time delay begins. The output is de‑energized before and during the time delay. At the end of the time delay, the output relay energizes and remains energized until input voltage is removed. Reset: Removing input voltage resets the time delay and output.
- LED Indication
Specifications
| Manufacturer Part Number | TDM230AL |
|---|---|
| Manufacturer | Littelfuse |
| Product Series | TDM |
| Family Series | Littelfuse Relays, TDM Series |
| Description | On Delay Timer, 230VAC, 1-1023 Sec, DIP Switch Selectable Time, DPDT 10A Output, 8-Pin Circular |
| Operation | On Delay |
| Contacts | DPDT |
| Mounting | Socket |
| Status Indicator | LED |
| Time Range Adjustment | Onboard |
| Adjustment Operator | DIP Switch |
| Timing Range | 1-1,023 s |
| Max Time | 1,023 s |
| Coil Voltage | 230 VAC |
| Nominal Coil Voltage | 240 VAC |
| Contact Rating | 10 A |
| Termination | 8 Pin |
| Approvals | CE, CSA, UL |
| Net Weight | 0.375 lbs |
| Gross Weight | 0.375 lbs |
