PCM22000A

Name: PCM22000A
Brand: Minarik Drives
SKU: PCM22000A-MNRK
Price: 339.55 USD
Availability: BackOrder

Minarik Drives Drives, PCM20000A Series

Skip to the end of the images gallery

Skip to the beginning of the images gallery

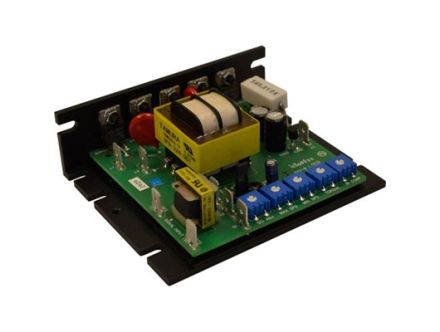

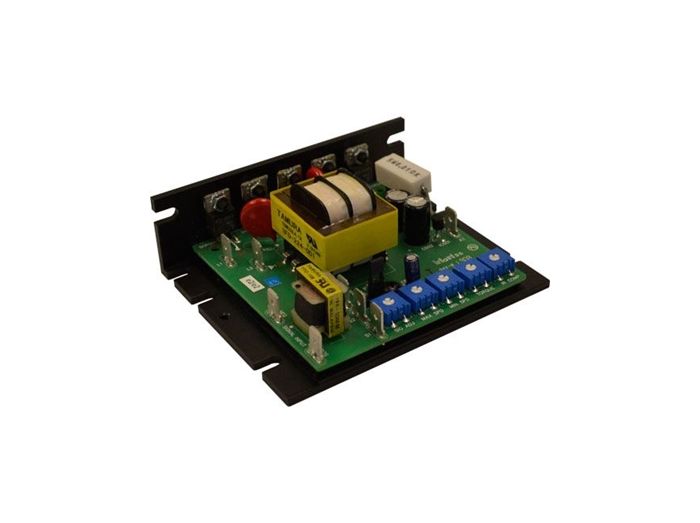

PCM22000A

Minarik Drives Drives, PCM20000A Series

Drive, 2HP, 230VAC Input, Pot Incl.

MFG Item Number

PCM22000A

Series

PCM20000A

More specs

Request Lead Time

View Alternative Products

Description

Drives, PCM20000A Series

Item #

PCM22000A

Drive, 2HP, 230VAC Input, Pot Incl.

PCM20000A Series Information

MM Footprint: PCM2x0x0A have a Compact Industry Standard Footprint
Isolated Inputs: Accepts Floating or Grounded Speed Reference Signals of 0‑10VDC or 4‑20mA. 3% Linearity through 50:1 Speed Range (60:1 for PC‑M23001A). 1% Linearity through 30:1 Speed Range
Speed Range and Regulation: 1‑2% Regulation over 50:1 (60:1 for PC‑M23001A) Speed Range
User Adjustable Calibration Pots: IR Compensation, Min Speed, Max Speed, Current Limit, Signal Max Adjust, and a Signal Min (PCM23xxxA Only)
Spade and Screw Terminals: Easy to Use Spade Terminals on Chassis; Screw Terminals on Enclosed Units

The PCM20000A Series of drives are a cost‑effective solution for variable speed, process control applications from 1/20 to 2 HP. These are SCR drives that integrate isolation allowing them to accept external analog process control signals. Alternative solutions require users to wire a separate isolation card to the drive which adds cost and reduces available space.

Users can operate the drives in manual mode using normal potentiometer operation or in signal mode where drive output is proportional to an external signal input. Additionally, the PCM23xx1A has a signal ratio made which allows the potentiometer to scale the output voltage while the external signal is the main control source. It comes with a quick connector for wiring between the three operation modes.

Additional Features: Manual or Signal Mode Jumper Select
Additional Features (PCM23xx1A Only): Third Mode of Signal Input with Ratio Output, Dual Voltage AC Input, DC Field Voltage

Links

Specifications

Specifications
Manufacturer Part Number	PCM22000A
Manufacturer	Minarik Drives
Product Series	PCM20000A
Family Series	Minarik Drives Drives, PCM20000A Series
Description	Drive, 2HP, 230VAC Input, Pot Incl.
AC Voltage	207-253 VAC
Output Armature Voltage (DC)	0-180 VDC
Phase	1
Operating Temperature	50-131 °F
Max Armature Current (DC)	10 A
Nominal Input Voltage	240 VAC
Operator Controls	Built In
Approvals	CE, UL
Comments	Potentiometer Included.
Nominal Armature VDC	36 VDC, 12 VDC, 24 VDC, 48 VDC, 90 VDC, 180 VDC
Net Weight	1 lb
Gross Weight	1 lb
