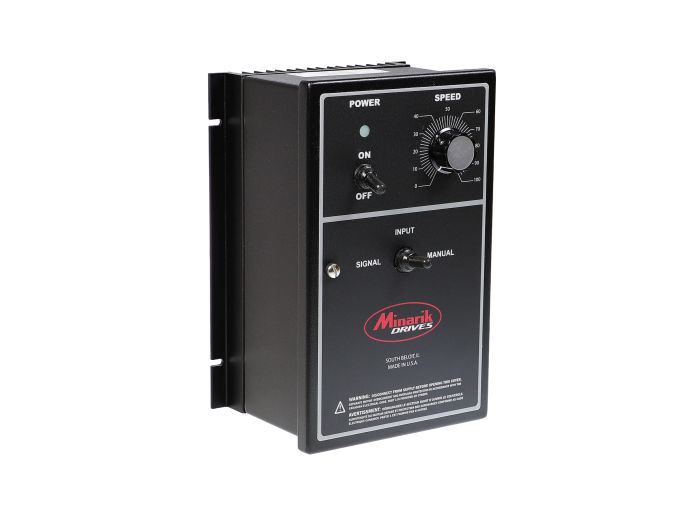

PCM23401A
Minarik Drives Drives, PCM20000A Series
PCM23401A
Minarik Drives Drives, PCM20000A Series
Drive, Pot Incl.
MFG Item Number
PCM23401A
Series
More specs
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Repair Yours
Is something broken or in need of attention? Start your repair request here, and we'll take care of it
Description
Drives, PCM20000A Series
Item #
PCM23401A
Drive, Pot Incl.
PCM20000A Series Information
- MM Footprint: PCM2x0x0A have a Compact Industry Standard Footprint
- Isolated Inputs: Accepts Floating or Grounded Speed Reference Signals of 0‑10VDC or 4‑20mA. 3% Linearity through 50:1 Speed Range (60:1 for PC‑M23001A). 1% Linearity through 30:1 Speed Range
- Speed Range and Regulation: 1‑2% Regulation over 50:1 (60:1 for PC‑M23001A) Speed Range
- User Adjustable Calibration Pots: IR Compensation, Min Speed, Max Speed, Current Limit, Signal Max Adjust, and a Signal Min (PCM23xxxA Only)
- Spade and Screw Terminals: Easy to Use Spade Terminals on Chassis; Screw Terminals on Enclosed Units
Users can operate the drives in manual mode using normal potentiometer operation or in signal mode where drive output is proportional to an external signal input. Additionally, the PCM23xx1A has a signal ratio made which allows the potentiometer to scale the output voltage while the external signal is the main control source. It comes with a quick connector for wiring between the three operation modes.
- Additional Features: Manual or Signal Mode Jumper Select
- Additional Features (PCM23xx1A Only): Third Mode of Signal Input with Ratio Output, Dual Voltage AC Input, DC Field Voltage
Specifications
| Manufacturer Part Number | PCM23401A |
|---|---|
| Manufacturer | Minarik Drives |
| Product Series | PCM20000A |
| Family Series | Minarik Drives Drives, PCM20000A Series |
| Description | Drive, Pot Incl. |
| AC Voltage | 104-127 VAC, 207-253 VAC |
| Output Armature Voltage (DC) | 0-90 VDC, 0-180 VDC |
| Phase | 1 |
| Output Field Current (DC) | 1 A |
| Operating Temperature | 50-104 °F |
| Max Armature Current (DC) | 10 A |
| Nominal Input Voltage | 120 VAC, 240 VAC |
| Output Field VDC | 100 VDC, 200 VDC, 50 VDC |
| Operator Controls | Built In |
| NEMA Rating | NEMA 4X |
| Approvals | CE, UL |
| Comments | Potentiometer Included. |
| Nominal Armature VDC | 36 VDC, 12 VDC, 24 VDC, 48 VDC, 90 VDC, 180 VDC |
| Net Weight | 6.95 lbs |
| Gross Weight | 7.665 lbs |
